Finish PDB solder

Now that we have soldered all four ESCs to the board, there are still a few additional components that need to be soldered.

Components to Solder

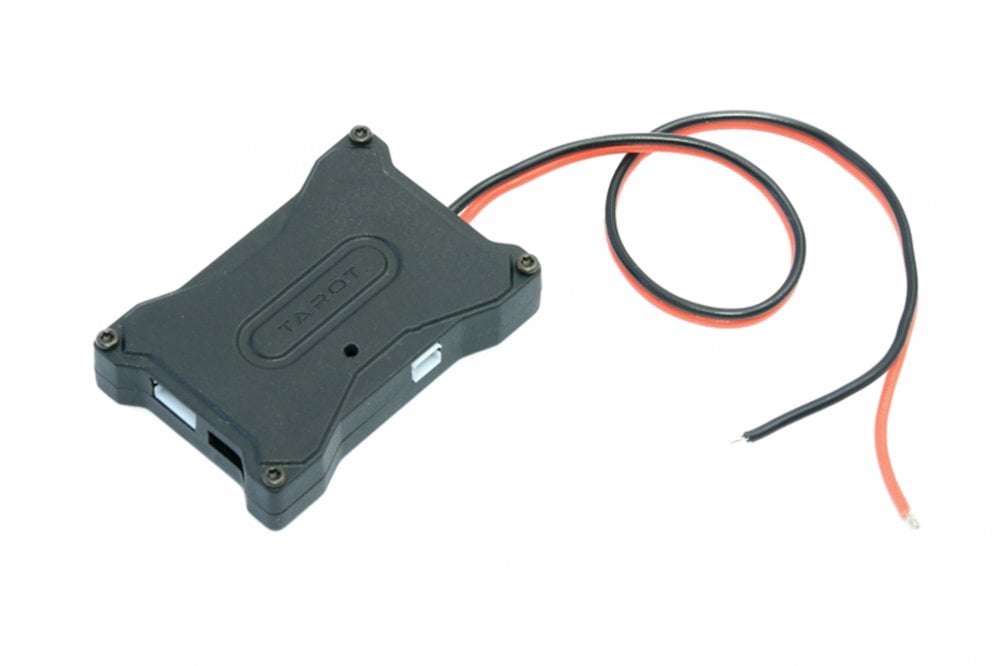

1. Landing Gear Wire


2. MAUCH Battery Eliminate Circuit (BEC)

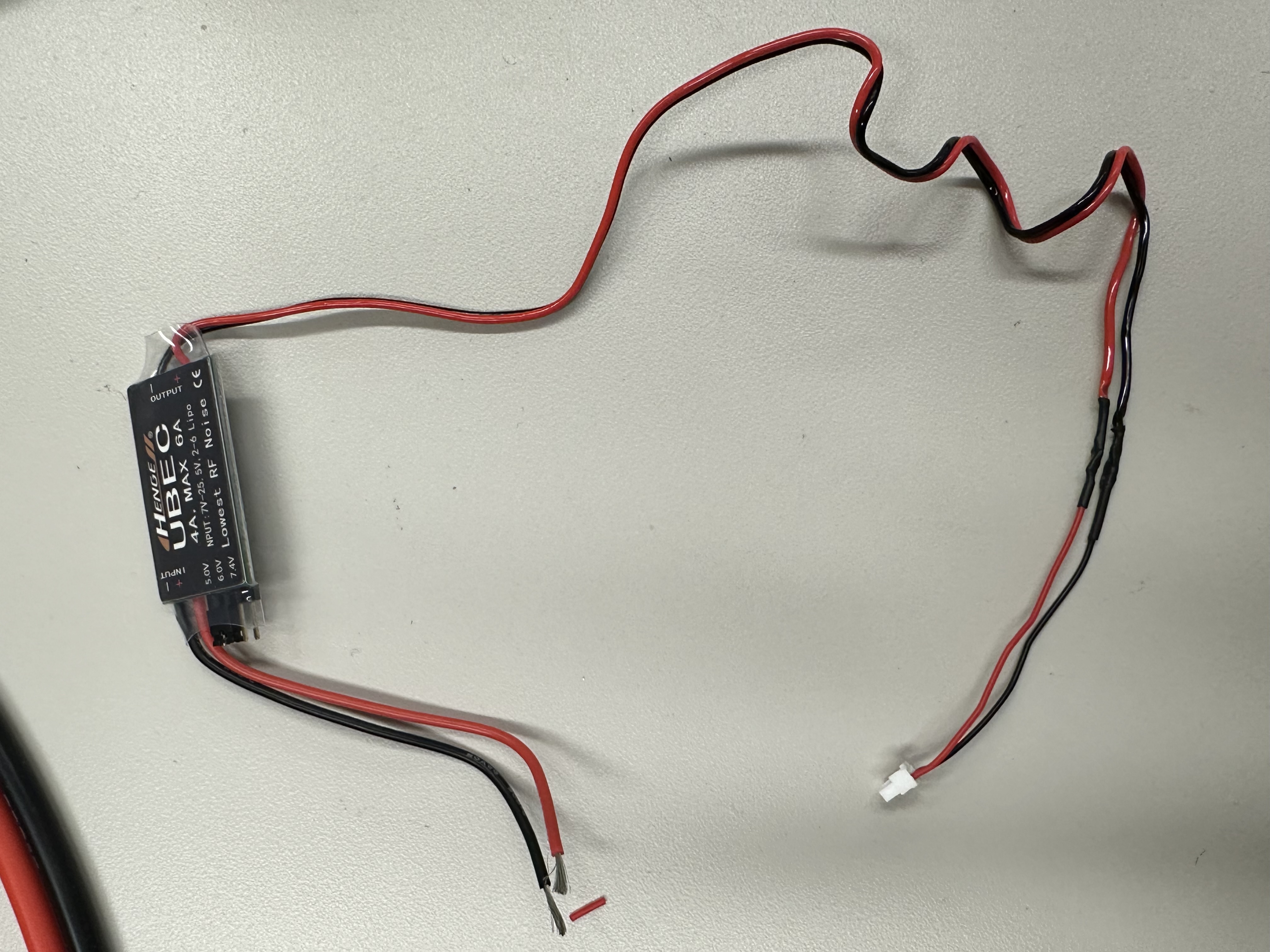

3. Universal BEC


4. Battery Connector


Solder Pads

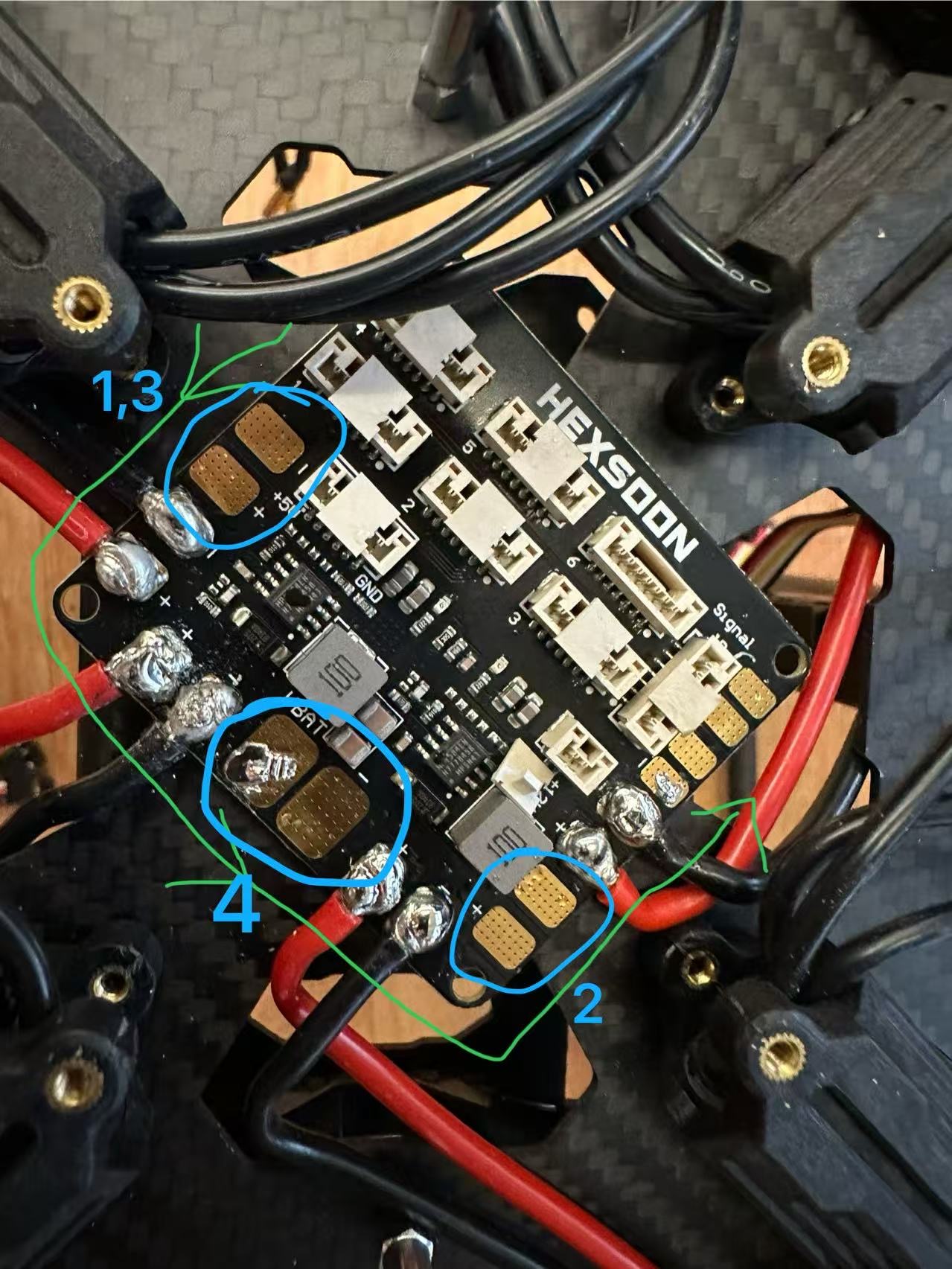

The picture below shows the pads on the board where these components will be soldered.

Important Note

Components 1 and 3 will be soldered to the same pad. It is recommended to twist the exposed wires together and tape the insulation before soldering, as shown below.
